JIS-B6339 / MAS403BT
All tools available in different lengths and diameters!i-tec® shrink fit chuck
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|
| i-tec® shrink fit chuck Standard version |
SK 40 / 50 | The clamping diameter is designed for a shaft tolerance h6. |  |
Quick change tapping chuck
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|
| Thread cutting- Quick change chuck |
SK 40 / 50 | To accommodate quick-change inserts with and without safety coupling. Length compensation in compression and tension, to compensate for differences between feed and thread pitch. The pressure point mechanism ensures that the tap immediately cuts the thread when the permissible axial force is applied. Tension detent protects the tapping chuck from damage due to excessive axial tensile load. |  |
Intermediate sleeves
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|
| Adapter sleeves for cylindrical shafts with inclined clamping surface (whistle notch) | SK 40 / 50 | For holding shank tools with inclined clamping surface (2°), DIN 1835 Form E and DIN 6535 Form HE. Adjusting screw drilled through for coolant. |  |
| Intermediate sleeves for cylindrical shafts with lateral driving surface (Weldon) | SK 40 / 50 | For holding shank tools with lateral driving surface, DIN 1835 Form B and DIN 6535 Form HB. |  |

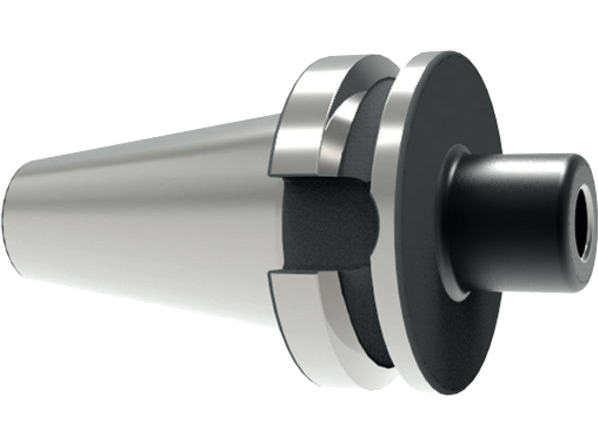

| Intermediate sleeves for Morse taper with expulsion tabs | SK 40 / 50 |  |
|

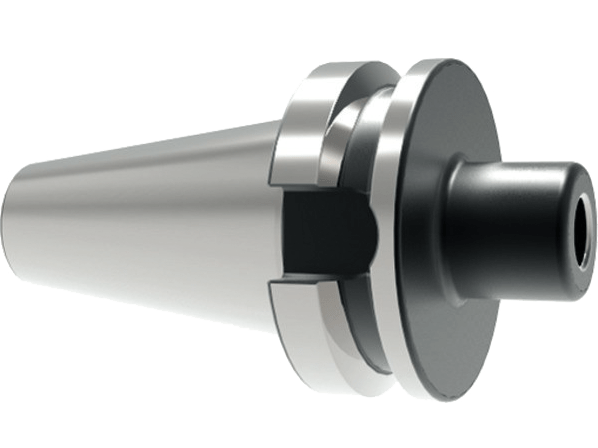

| Intermediate sleeves for Morse taper with tightening thread | SK 40 / 50 |  |
Hydraulic expansion chuck
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|
| Hydraulic expansion chuck | Sk 40 / 50 | For tools with shank according to DIN 1835 form A and B and DIN 6535 form HA and HB. Shanks to DIN 6535 Form HE can only be used in conjunction with reducing bushes. Shaft quality h 6, Ra min = 0.3. For Ø 25 and Ø 32 only Form A or Form HA can be used. |  |
Chuck for collets
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|
| Chuck for collets ER/ESX 25/32/40 with female thread | SK 40 / 50 | For clamping tools with cylindrical shank according to DIN 1835 form A, B and E and DIN 6535 form HA, HB and HE. Chuck with internal thread for adjusting screws. |  |
| Chuck for collets ER/ESX 11/16 with internal thread | SK 40 / 50 | For clamping tools with cylindrical shank according to DIN 1835 form A, B and E and DIN 6535 form HA, HB and HE. Chuck with internal thread for adjusting screws. |  |
Shell mill arbors
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|

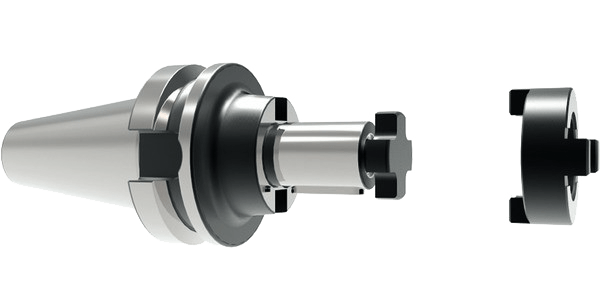

| Shell cutter arbors for cutters with longitudinal or transverse flute | Sk 40 / 50 | For clamping shell end mills and cutter heads with longitudinal or transverse flutes. |  |

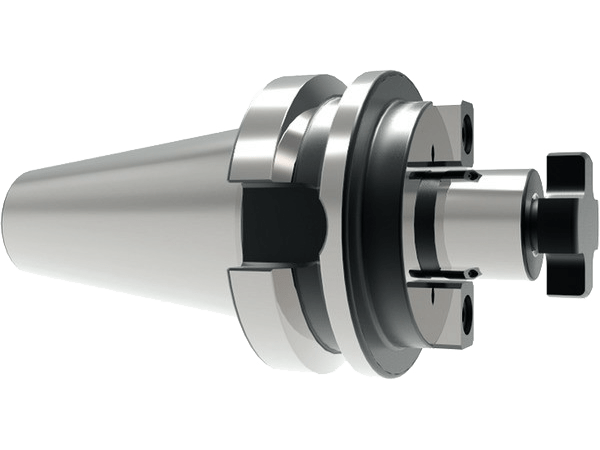

| Shell milling cutter arbors with enlarged contact diameter | Sk 40 / 50 | For clamping shell end mills and cutter heads with cross groove. Centrally drilled through as preparation for coolant supply. Clamping Ø 40 and 60 with 4 threaded holes to accommodate cutterheads with tool mounting according to DIN 2079. |  |
Tool holder
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|
| Tool holder for screw-in milling cutter | SK 40 / 50 | For clamping screw-in cutters with thread. |  |
Drill chuck
| SK sizes | Execution / Note | Representation | |
|---|---|---|---|
| Drill chuck | SK 40 / 50 | For holding tools with cylindrical shanks for use on machining centers and NC machines. High precision and concentricity. Holding torque with clamping diameter 12mm ≥ 70 Nm. Left-right rotation. Easy operation, clamping and releasing via supplied hexagonal pin wrench. |  |
