INDUSTRIAL line: Your partners in tool measurement at a glance

Measuring length X (ø)400 mm400 mm / 600 mm400 mm / 600 mm400 mm Measuring length Z500 mm500 mm / 600 mm600 mm / 600 mm300 mm Weight 190 kg190 kg / 220 kg300 kg475 kg Easy /
460 kg CoVis Measures (LxWxH)1173 x 475 x 1.093 mm1.393 x 475 x 1.211 mm1.267 x 570 x 1.273 mm1.784 x 886 x 1.570 mm (inkl. TUL Rack V) Software EasyCoVisEasyEasy Techn. equipment

• SK 50 precision spindle with roller bearings and 0.002 mm concentricity incl. 4x90° indexing, vacuum clamping and spindle brake

• Optical high quality, high contrast profile projector for transmitted light (20x magnification, ø 110 mm , 15° pitch)

• Panel-PC with Software Easy

•Digital camera with LED transmitted and reflected light illumination for accurate measurements and high-contrast cutting inspection

• Endless fine adjustment in both axes allows micrometer fine approach of the axes

• Pneumatic one-hand operation allows both axes to be adjusted quickly, either individually or together

• Highest measuring reliability due to precise brand-name glass scales in both axes

• Convenient adjustment of the axes by means of pneumatically released coarse adjustment. Additionally with handwheels for fine adjustment.

•High-precision tool spindle with direct SK 50 interface and integrated calibration balls. Optionally with pneumatic tool clamping.

• CMOS camera with precise optics and illumination for repeatability of ± 2 µm.

• 3 versions available:
1. manual,
2. manual with CNC spindle (autofocus),
3. full CNC

• Convenient infeed of the axes by means of pneumatically released quick adjustment. Additionally with endless fine adjustment.

• Variable table equipment with tool holder of various interfaces, manual modular precision spindle, universal tool spindle as well as customer-specific attachments.

• Telecentric optics, illumination and CCD camera

MaterialGray castGray castDuctile iron Ductile iron Standard accessories

TUL Rack VAccessories optional

• Underbench TUL workbench

• Turning center
measuring device

• Reductions

• Thermal label printer

• protective cover

• underframe TUL-workbench

• Turning center
measuring device

• Reductions

• Thermal label printer

• protective cover

• Base frame TUL Rack V or TUL workbench

• Autofocus / CNC

• Turning center camera

• Turning center
measuring device

• Additional tool monitor

• Tool clamping

• RFID system

• Reductions

• Thermal label printer

• protective cover

• CoVis software

• Optics carrier with rotary center camera

• Various table mountings

• Thermal label printer

• protective cover

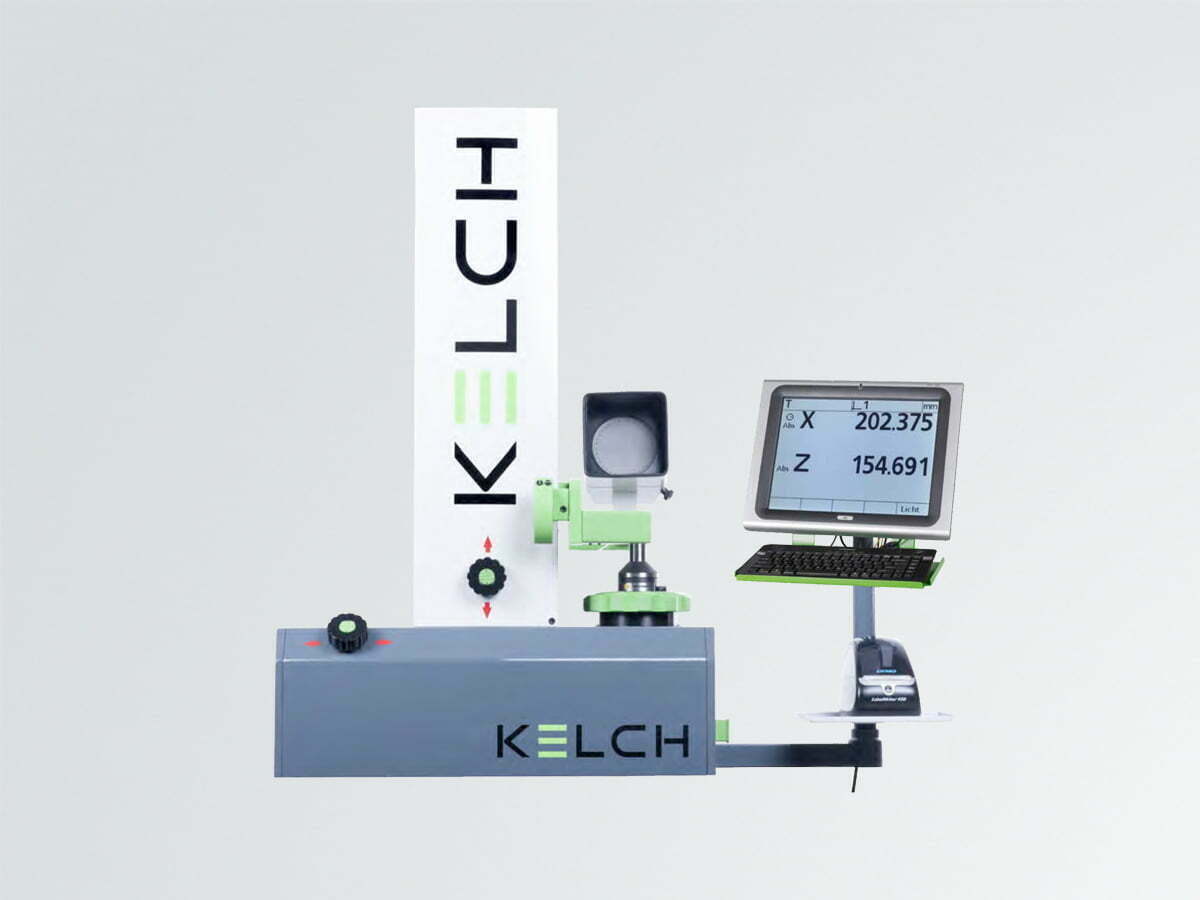

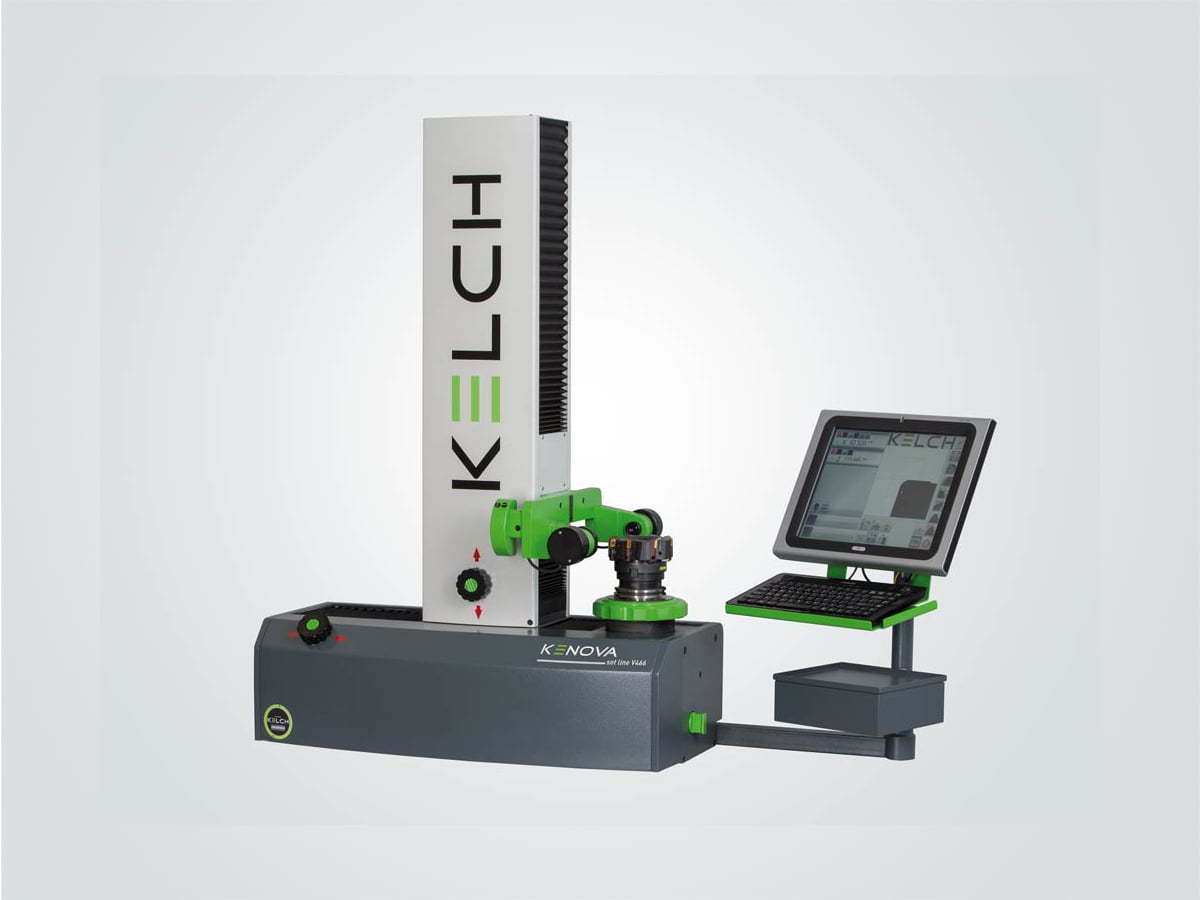

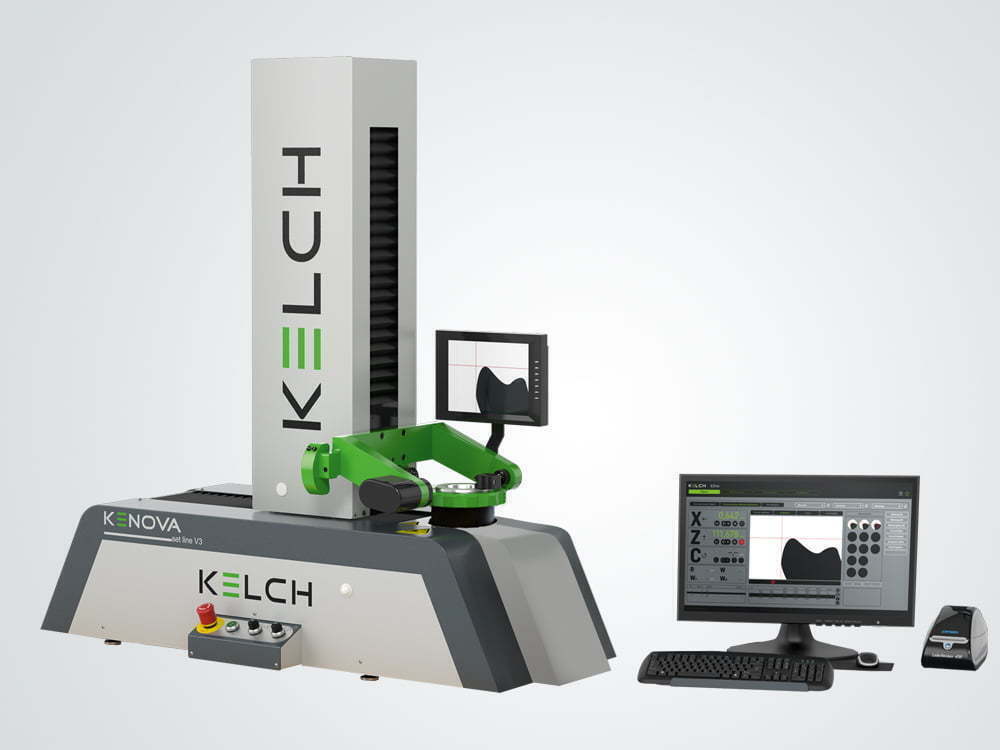

 V345P EasyV345/V466 CoVisV346/V366 EasyH343 Easy

Measurementverticalverticalverticalhorizontal
